Performance and versatility – also under extreme conditions

Our RS wheel block system is suitable for applications in which a housing made of sheet steel is required, such as for impact loads. The RS system is also employed in high-temperature applications up to 250 °C or wherever a stainless steel housing is needed. Various travel wheel designs and possible connections to superstructures make the system suitable for universal applications. Further strengths include:

• 5 sizes with load capacities from 3.5 tonnes to 18 tonnes

• housing made of steel or stainless steel

• many travel wheel contours as standard

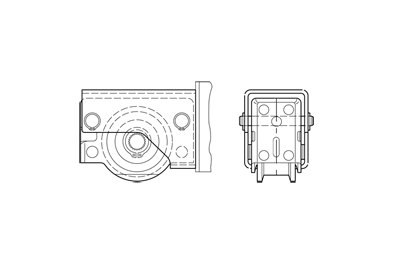

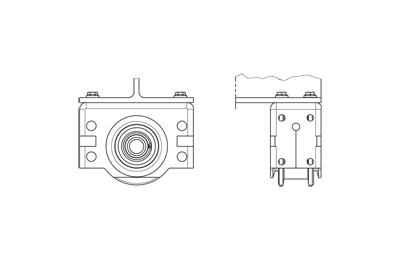

• 4 variants for connection to the customer's superstructure

Product information

High performance for extreme applications

Long service life of the steel and mechanical elements

• Stainless design for applications in the chemical industry, the foodstuffs sector and in aggressive environments (size RS 125)

Versatile

Wide variety of standard travel wheel designs

• Housing made of steel or stainless steel

• 5 sizes with load capacities from 3.5 tonnes to 18 tonnes (RS 125 to RS 400)

Very easy assembly

Rapid installation and removal for all connection variants

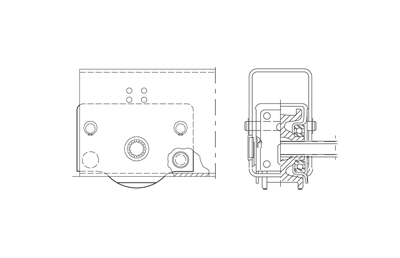

• Reamed lateral bore holes for the pin connection

• Integrated connections for torque brackets, guide roller arrangements and buffers
