Modular system for tailor-made solutions

Our DRS wheel block system is a versatile travel wheel system and is perfectly integrated into our modular drive system. Eight finely graded sizes with load capacities of up to 40 tonnes per wheel provide the right wheel block for every application. And the large selection of travel wheels and special wheel designs enable them to be adapted to almost any travel rails and operating conditions. Cost-effective and ready to install. Further strengths:

• high performance range and maximum load capacity

• many travel wheel shapes as standard as well as customer-specific designs

• 4 variants for connection to the customer's superstructure

• high-quality housing with optimum protection of the travel wheels and bearings

Product information

Exact configuration

• 8 sizes with load capacities per wheel from 2.75 tonnes to 40 tonnes

• Wheels of various shapes and designs – made of spheroidal-graphite cast iron (GGG 70), polyamide or featuring Hydropur tires

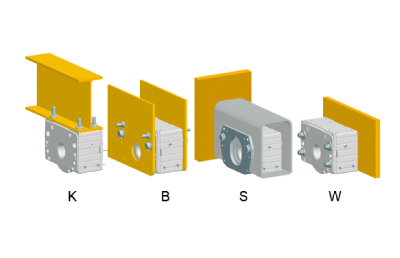

Many connection variants

• K: Top connection

• B: Pin connection

• S: End connection

• W: Side connection

Tailored solutions

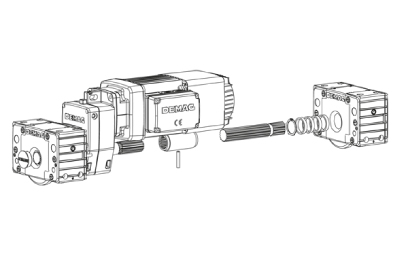

• Complete travel units with precisely matching geared motors from the Demag modular drive system

• High ground clearance for wheel blocks thanks to the compact system design – also for complete drive units with their gearbox concept designed to match the wheel load.
