A compact solution tailored to meet your needs for every drive application

Our angular geared motors feature an extremely compact design – which makes them suitable for a wide variety of applications. They enable efficient travel drive solutions to be implemented with ease, even with narrow track gauge dimensions. The basis is provided by outstanding parameters:

• large torque range from 120 to 12,000 Nm

• wide range of transmission ratios

• particularly smooth operation

• bevel-wheel gearbox with high efficiency

Product information

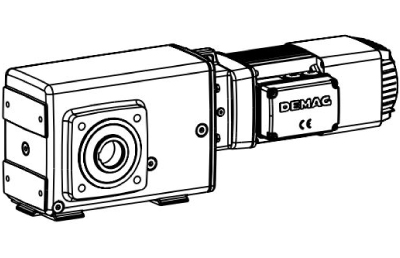

Universal type WU

Maximum flexibility

• Hypoid or bevel-wheel gearbox
• Direct input or coupling connection
• Drive shafts in 5 variants
• 4 housing designs

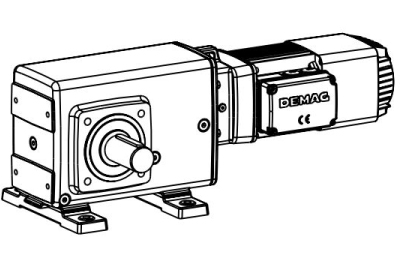

Foot-mounted type 1 WG

W10 to W50 hypoid gearboxes for particularly smooth operation

• High transmission ratio in the hypoid stage
• Direct input or coupling connection
• Drive shafts in 5 variants
• 4 housing designs

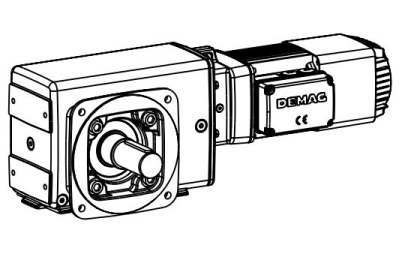

Foot-mounted type 2 WG

W60 to W100 bevel-wheel gearboxes with high efficiency

• High transmission ratio thanks to three stages already in the basic design
• Direct input or coupling connection
• Drive shafts in 5 variants
